Catchpit Chamber - 300mm Diameter Base Only 110mm Pipes
Click or tap the image to open in fullscreen
| Code | AICCP300B |
|---|---|
| EAN Code | 0691208251907 |
| Brand | Turtle Enviro |
| Colour | Black |
| Diameter | 300mm |
| Material | Polyethylene moulded base section |
| Chamber Type | Catchpit |
| Pack Size | Single |
| Dimension | 300mm Diameter |
| Specification | BS EN 13598-2 (2009) |
| System Size | 300mm Diameter |
| Pipe Fit | For 110mm Drainage Pipe |

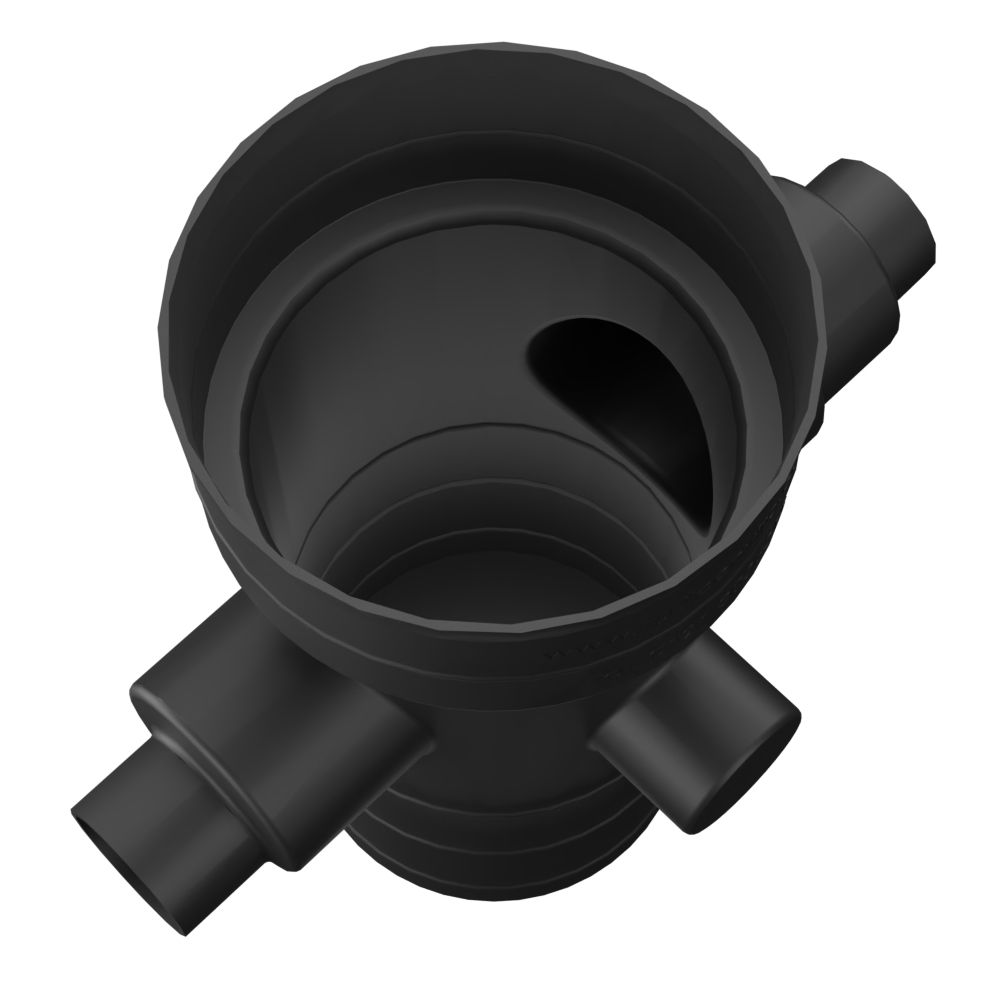

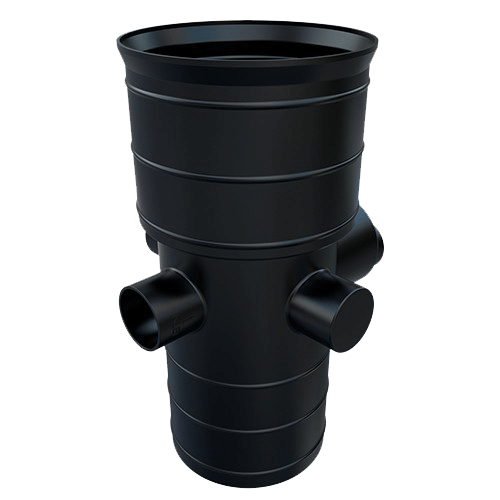

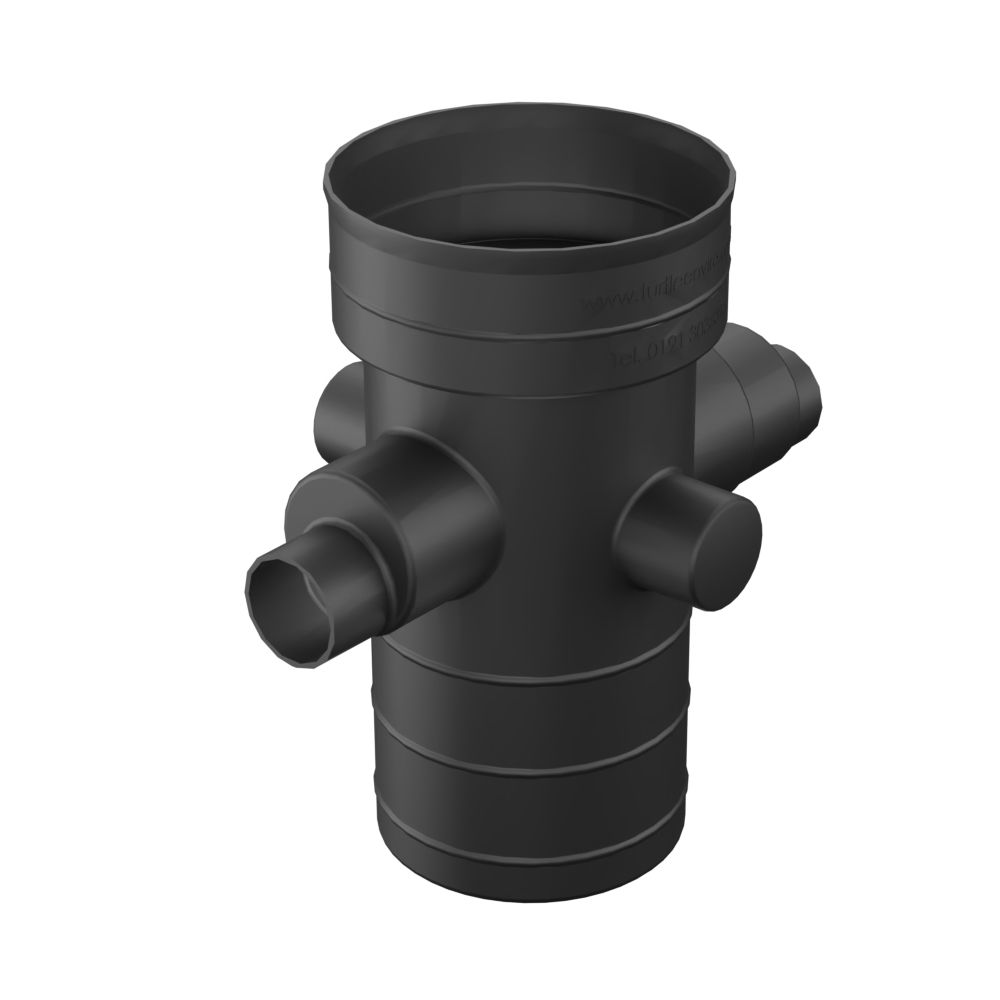

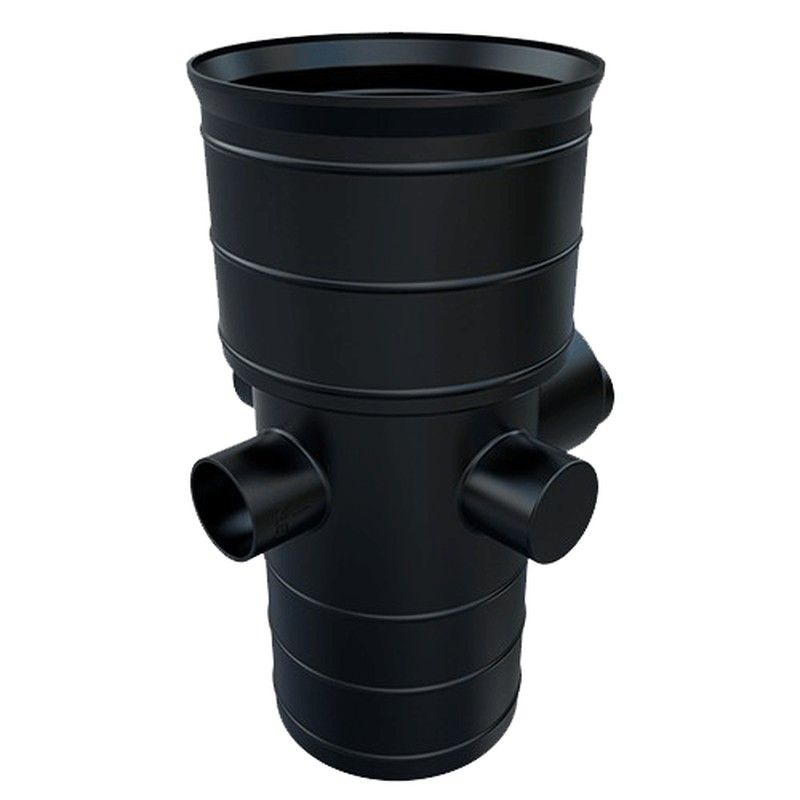

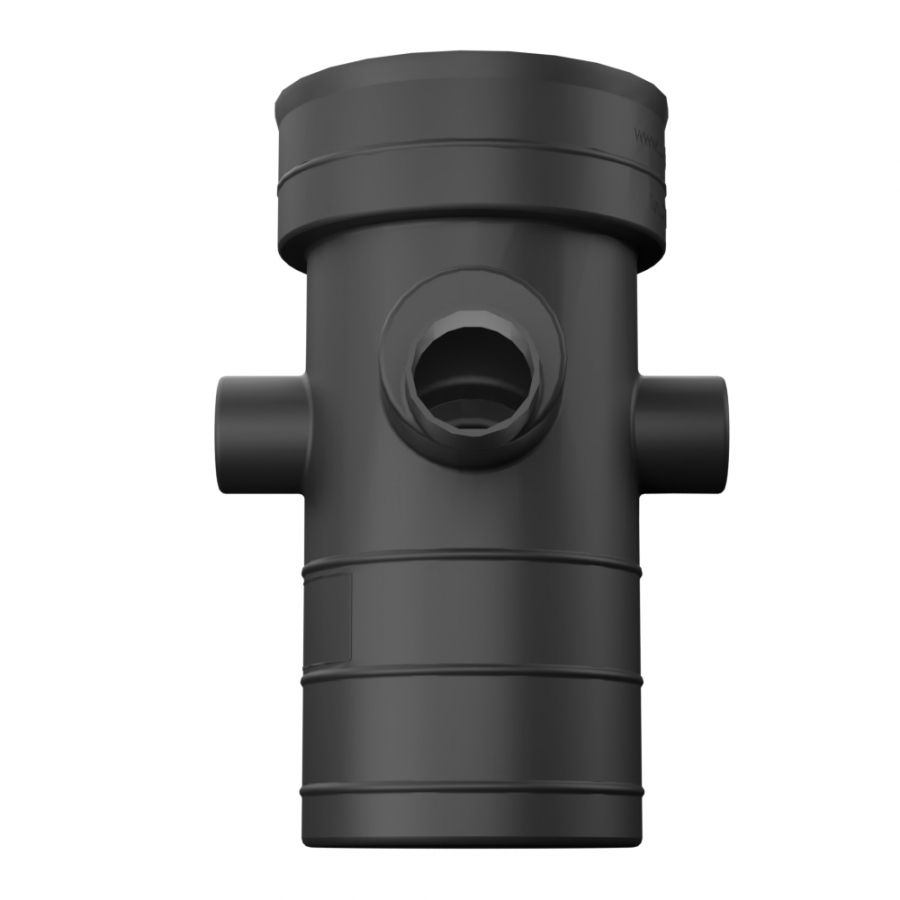

300mm diameter catchpit chamber base with 110mm drainage pipe inlet and outlet.
Our Catchpit chambers are to be used for catchment of silt and solids in surface water drainage systems. This pit will give above ground access for inspection and maintenance of systems.
Part of the Accesso Blue range and manufactured by Turtle Enviro, catchpit chambers are lightweight and quick and simple to install and there is no need for machinery or heavy lifting equipment.
Our Catchpit Chambers are factory assembled and come in one piece.
Catchpit Chambers Features & Benefits
- 275mm deep sump
- 110mm drainage pipe options to fit underground drainage systems
- Optional inlets available to suit site requirements
These catchpit chambers are manufactured in the UK to BS EN 13598-2 (2009).
To find out how to install your catchpit chamber view our general installation guide.
Inlets & Outlet
Standard outlet will always be at 0 degrees and unless requested at checkout the standard inlet will be at 180 degrees.
Further inlets can be accommodated dependant on the diameter and position required. The diagram shows the preferred options if multiple inlets are required.
We will advise on the suitability once we have the details of your requirement.
