Catchpit Chamber Set - 600mm Diameter x 2335mm Height For 160mm Pipe with 110mm & 225mm Inlets

In stock
Code
AICCP600B24

Click or tap the image to open in fullscreen

Catchpit Chamber Set - 600mm Diameter x 2335mm Height For 160mm Pipe with 110mm & 225mm Inlets
More Information
Code AICCP600B24
£680.40 £567.00 £210.80 Save -223%

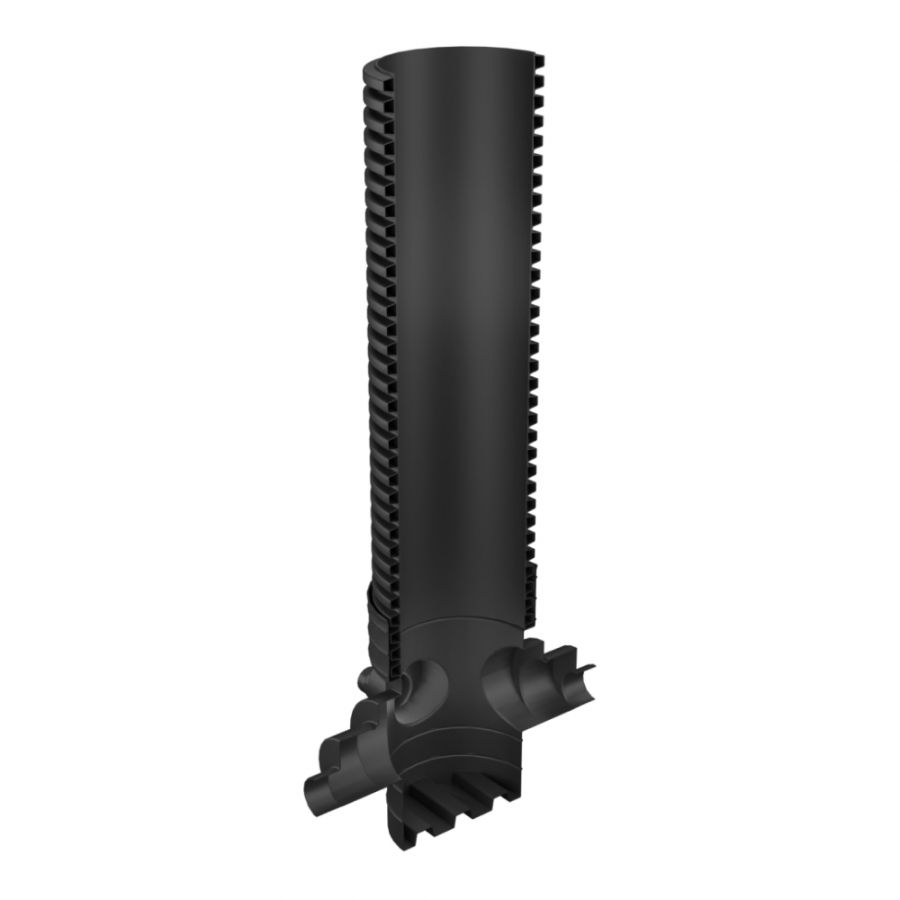

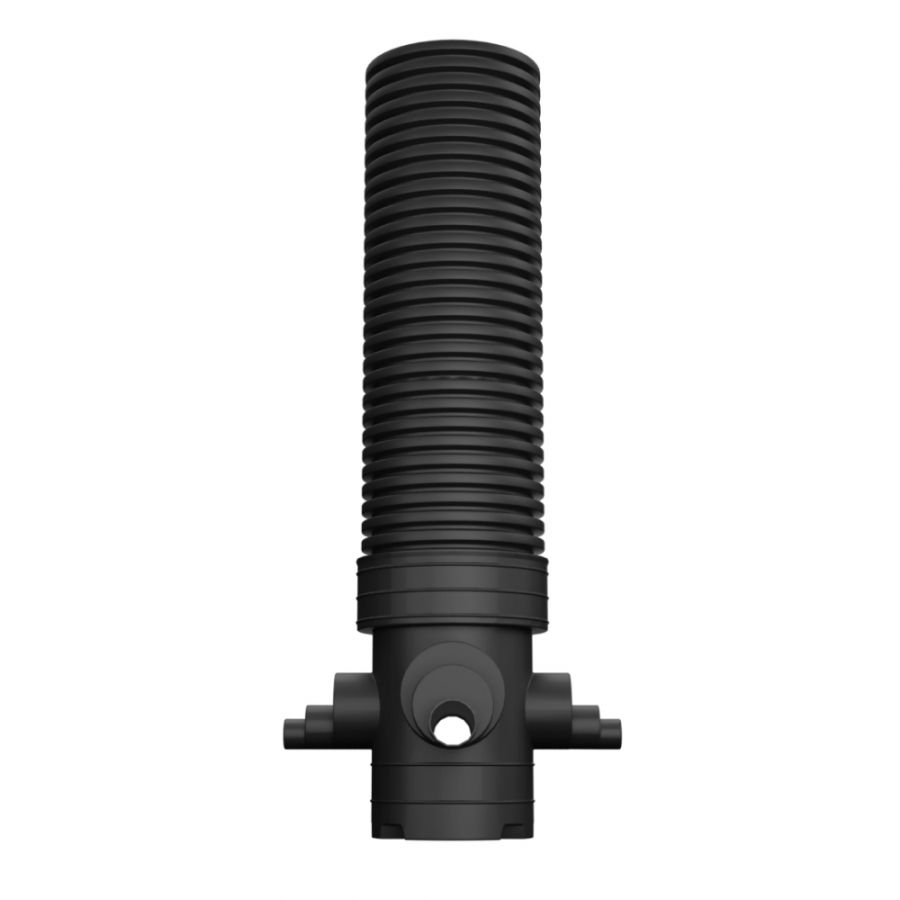

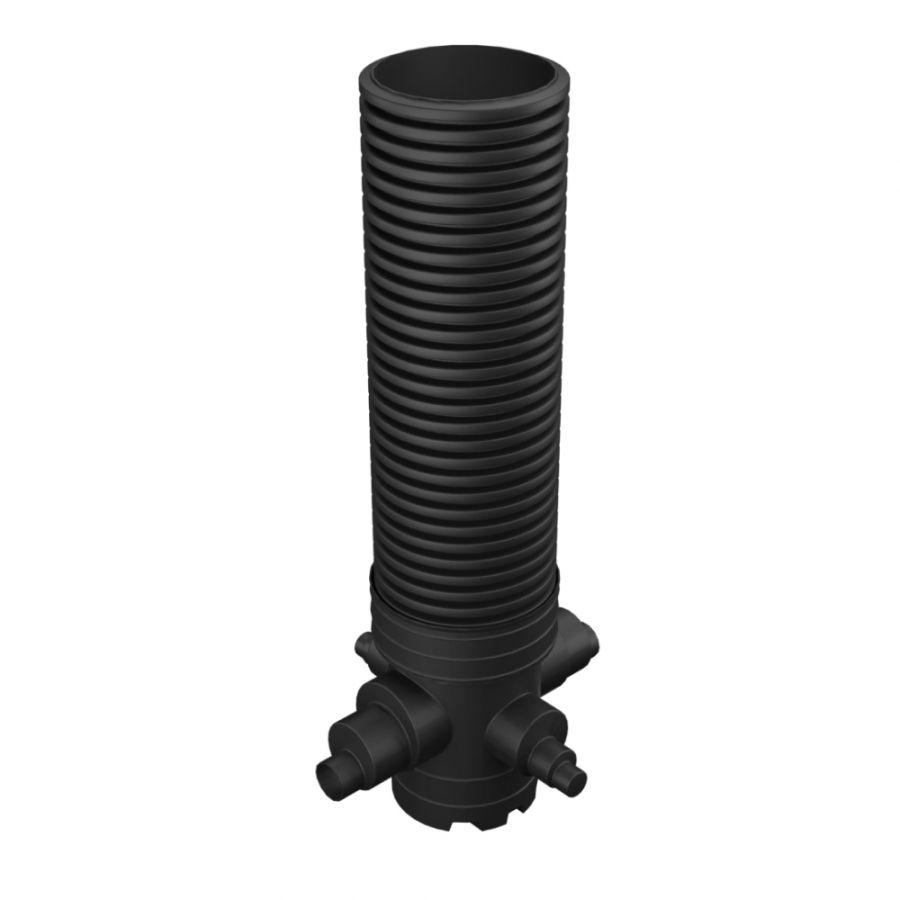

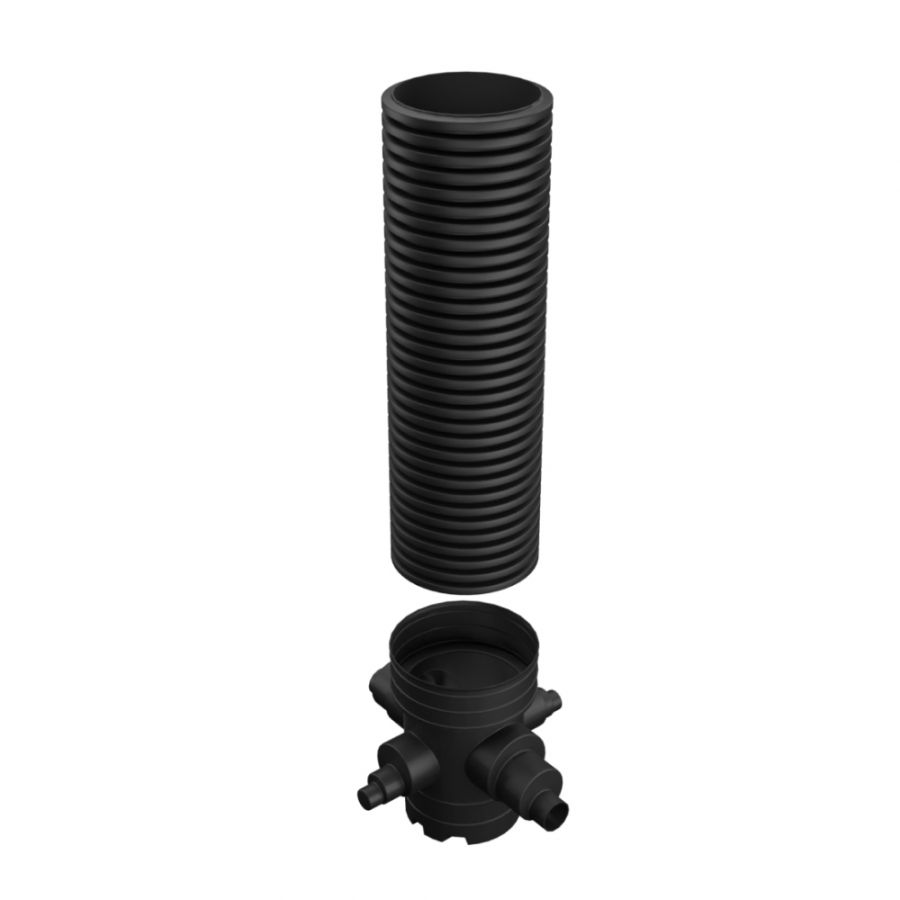

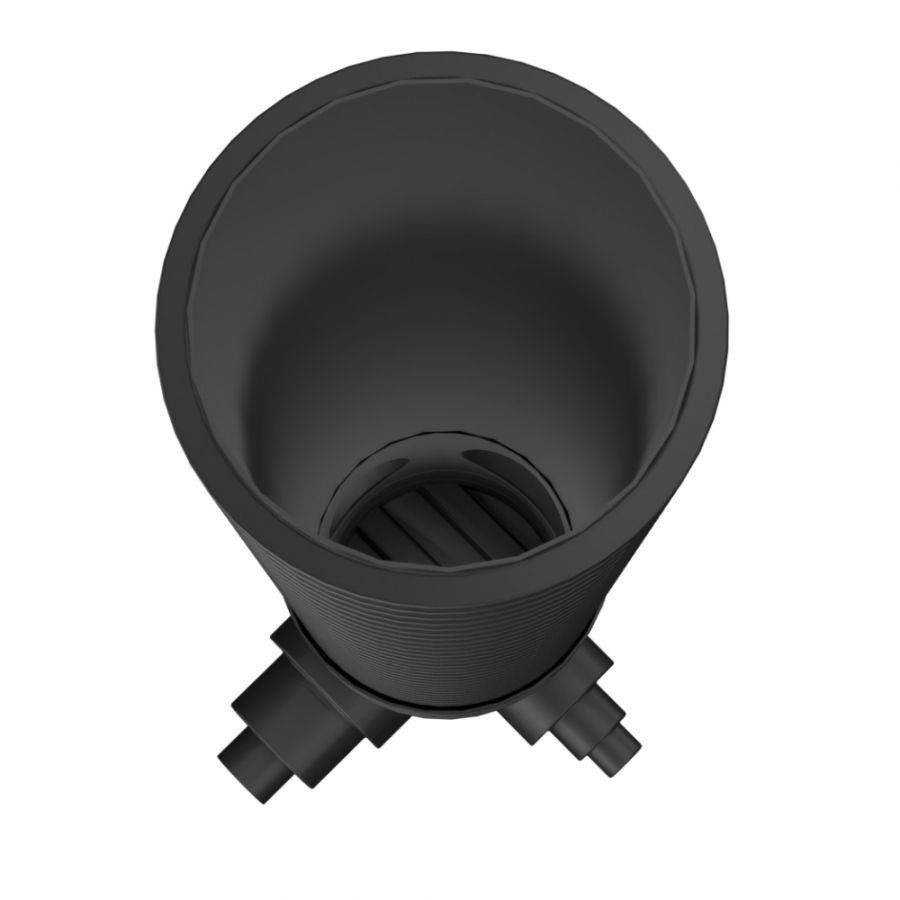

This catchpit chamber has a diameter of 600mm and is 2335mm deep. It features a main channel of 160mm and an additional two 110mm/160mm or 225mm twinwall inlets at 90 degrees.

_x000D_

Our catchpit chambers are to be used for catchment of silt and solids in surface water drainage systems. This pit will give above ground access for inspection and maintenance of systems.

_x000D_

Part of the Accesso Blue range and manufactured by Turtle Enviro, catchpit chambers are lightweight and quick and simple to install and there is no need for machinery or heavy lifting equipment.

_x000D_

KEY FEATURES & BENEFITS OF THIS PRODUCT

_x000D_
    _x000D_
  • Quick and simple installation
  • _x000D_
  • Arrives factory assembled in one piece
  • _x000D_
  • Design life of 60 years
  • _x000D_
  • Lightweight and requires no specialist equipment to lift
  • _x000D_
  • Compatible with most pipe systems
  • _x000D_
  • Granular backfill
  • _x000D_
  • Complies with EN 13598-2 (2009), SfA7 and Building Regulations Part H1
  • _x000D_
  • 2 x 160mm & 2x 110mm/160mm or 225mm twinwall inlets
  • _x000D_
_x000D_

To view Turtle's installation guide for inspection chambers, click here.
