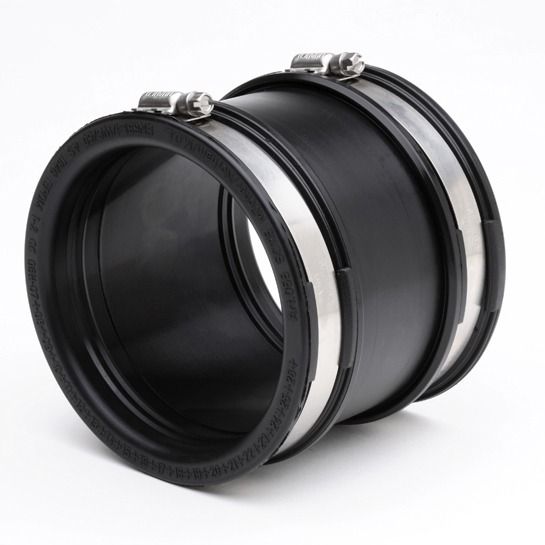

Drainage Flexible Coupling Straight - 180mm - 195mm
Click or tap the image to open in fullscreen
|Guarantee||10 Year Manufacturer Guarantee|
|Specification||BS EN 16397 Parts 1 and 2|
|Size||180mm-195mm Both Ends|
Flexible couplings incorporate a rubber body with stainless bands to enable the fitting to compress down onto different sizes and types of pipe.
As the steel band is tightened (like a jubilee clip), the EDPM material from which the coupler is made compressed uniformly around the pipe, forming an airtight and watertight seal. The clips are made from stainless steel which means that they are impervious to rust.
Each end of this straight-through adaptor can be connected to a pipe with an outside diameter of between 180mm and 195mm.
Ideal for joining PVC drainage pipe to other drainage materials such as clay, salt glaze, supersleve, asbestos cement and pitch fibre.
There are many types of drainage materials that are still in use from previous generations, and connecting on to them can sometimes prove problematic. Flexible couplings remove the need for a multitude of different size adaptors by their adjustable nature.
The steel bands are adjusted and tightened using a screwdriver.
Not sure how to use it? Click here to watch a short video.
