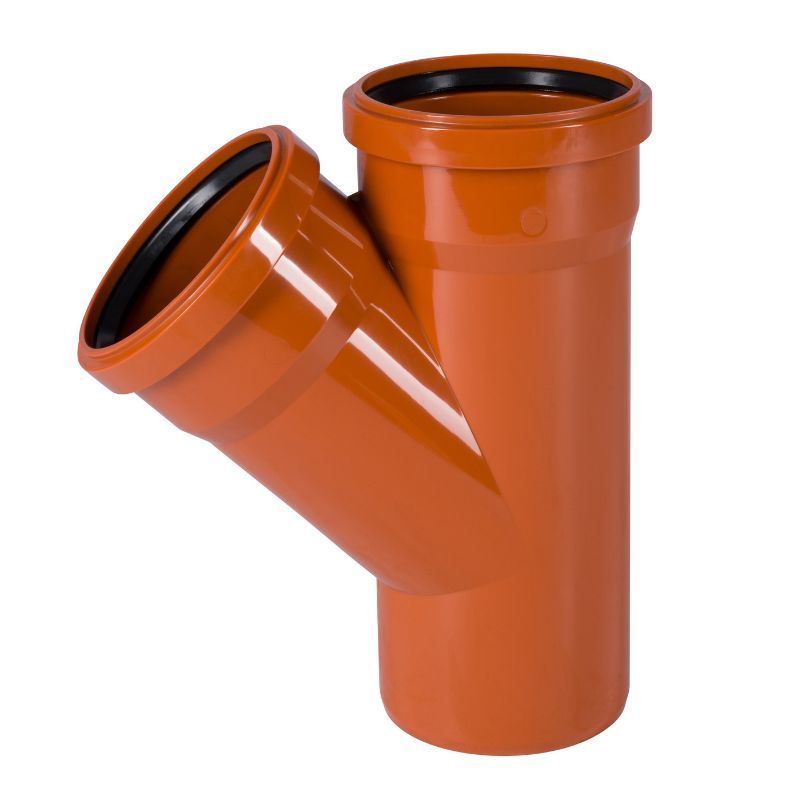

Drainage Junction Double Socket - 45 Degree x 110mm - Pack of 12
Click or tap the image to open in fullscreen
| Code | UY110DPK12 |
|---|---|
| EAN Code | 5056919005457 |
| Weight (kg) | 7.908000 |
| Angle | 45 Degree |
| Brand | PBSL Group |
| Colour | Terracotta |
| Diameter | 110mm |
| Material | PVC-u |
| Pack Size | Pack of 12 |
| Style | Double Socket |
| Guarantee | 2 Year Manufacturer Guarantee |
| Specification | BS EN 1401-1 |
| System Size | 110mm |
This pack of 12 double socket 45 degree junctions is an economical bulk buy for 110mm underground drainage installations. Also known as branches, these fittings bring a second pipe run into the main drain at 45 degrees, which creates a smoother flow path than a right angled connection and helps reduce the risk of blockages.
The main channel and the branch inlet are socketed to accept a length of 110mm drainage pipe. Any pipe that has been cut to length should be chamfered and lubricated with our SG100 lubricant before insertion into the socket to ensure the best possible seal. The sockets will also accept fittings with a pre-chamfered spigot end, such as single socket bends or gullies.
Buying 110mm drainage junctions by the pack keeps the unit cost down and means spares are always to hand on site.
Please watch our overview video below
