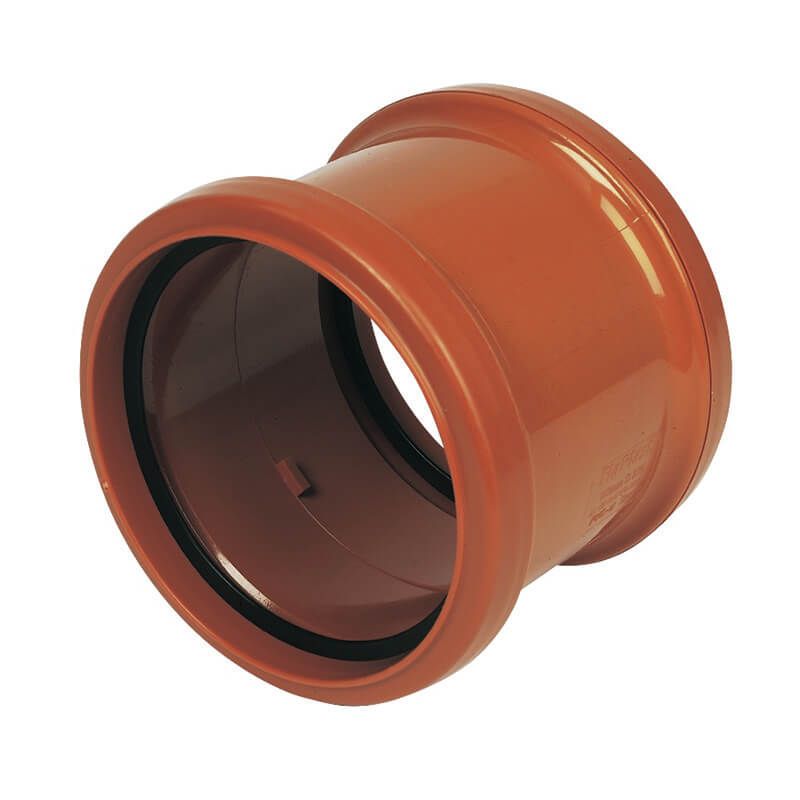

FloPlast Drainage Coupling Double Socket - 110mm

In stock

Click or tap the image to open in fullscreen

FloPlast Drainage Coupling Double Socket - 110mm
More Information
Code D105
EAN Code 5055149907104
Weight (kg) 0.269000
Brand FloPlast
Colour Terracotta
Material PVC-u
Pack Size Single
Style Double Socket
Dimension 230mm x 230mm x 133mm
Guarantee 10 Year Manufacturer Guarantee
Specification BS EN 1401-1
Size 110mm
£4.51 £3.76
Spend another £1500 to pay over time with Klarna

This coupling is used to join two plain ended pipes together.

It can also be used to connect a plain ended pipe to the plain end of another fitting.

Whenever any connection is made to a fitting which incorporates a ring seal (push fit) connection, the pipe should always be chamfered and the seal lubricated with silicon lubricant prior to insertion into the fitting.

This coupling can also be turned into a slip coupling. Slip couplings have no central stops, enabling them to be slid along the length of a drainage pipe.

This is particularly useful for installations in a confined space, or for use when repairing a damaged pipe.

In this instance the damaged section of pipe can be cut out, and slip couplings positioned over the undamaged section. When the new section is lowered into position the slip couplings are slid into position to make the joint between the old and new pipes.

To use this coupling as a slip coupling, simply tap out the small internal lugs on the inner central wall of the fitting with a flat-bladed screwdriver and a hammer.
