Impermeable Liner for Attenuation - Landflex AS Shoebox - Heavy Shallow 50 Cubic Metre

In stock
Code
SHOEBOX50M3SHALLOWHVY
More Information
Code SHOEBOX50M3SHALLOWHVY
EAN Code 0691208256797
Brand TCS Geotechnics
Material Plasticised PVC with a Layer of Polyester Fabric
Pack Size 50 Cubic Metre
Style Shoebox
Dimension 13800mm (W) x 10200mm (L) x 360mm (D)
£5,276.66 £4,397.22
You need to spend another £250.00 to qualify for 2.5% discount.
This product incurs a one-off £30.00 + VAT pallet surcharge per order due to its weight.

Impermeable membrane in a shoebox design for use with our heavy shallow (360mm deep) attenuation tanks.

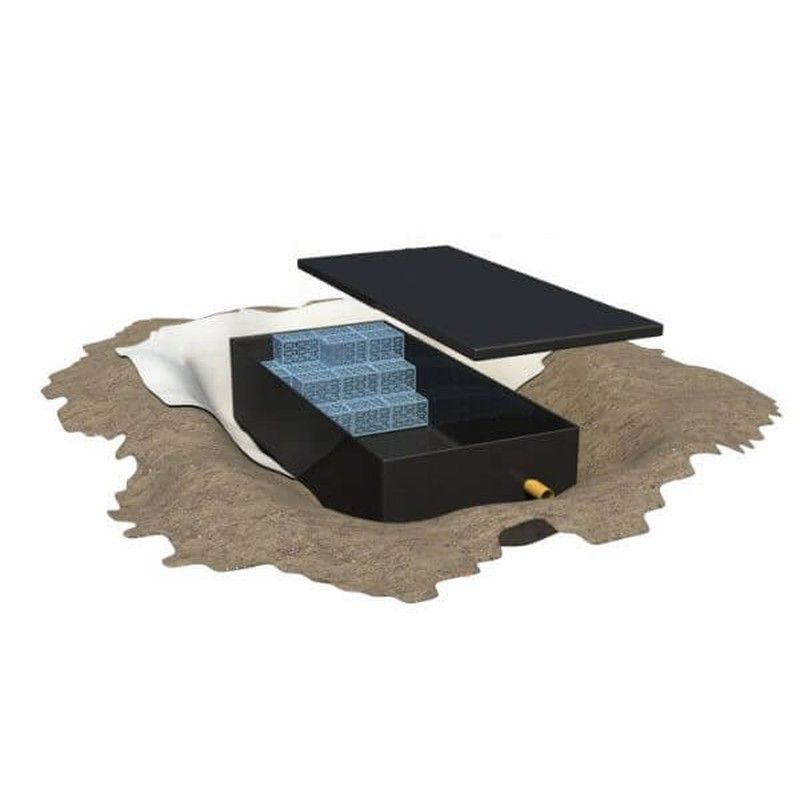

This liner is primarily used to wrap around geocellular attenuation units and is usually supplied in two fabricated pieces. The first is the base while the second is for the top with a small overlap down the sides. The two pieces effectively make a ‘shoebox’.

Impermeable membrane will hold water within the structure which can then be released into the mains network or recycled for re-use.

The pieces will come folded in a concertina fashion on pallets with clear instructions as to where to place, unroll and pull out.

The shoebox impermeable liner comes with a non-woven protector geotextile which should wrap around the whole system before backfilling.

Top hat, double-sided tape and jubilee clips are also included for complete installation.

For installation advice and guidance please take a look at our attenuation system installation guide.

The Landflex AS shoebox attenuation liner is designed to fit on our pre-sized commercial soakaways in 5, 10, 20 and 50 cubic metres. Please note that we can cater for whatever size system you need so please get in touch to receive a personalised quote for your exact system measurements.

For larger applications several panels can be pre-fabricated and welded together off site, custom ready for final jointing on site, greatly reducing installation times.

Please Note - as this product is made to order it will take 7-10 days for delivery.

Impermeable Geotextile Membranes

Unlike the permeable options, impermeable geotextile membranes do not allow any water to pass through them. They are used to retain water within an area or a structure, or to prevent water ingress into a specific area or structure.

Impermeable membranes are available in rolls or in pre-formed box shapes commonly called shoeboxes.
