Inspection Chamber Set - 600mm Diameter x 1020mm Depth with 110mm Channel & 110mm Inlets

In stock
Only %1 left
Code
AIC1106001SP

Click or tap the image to open in fullscreen

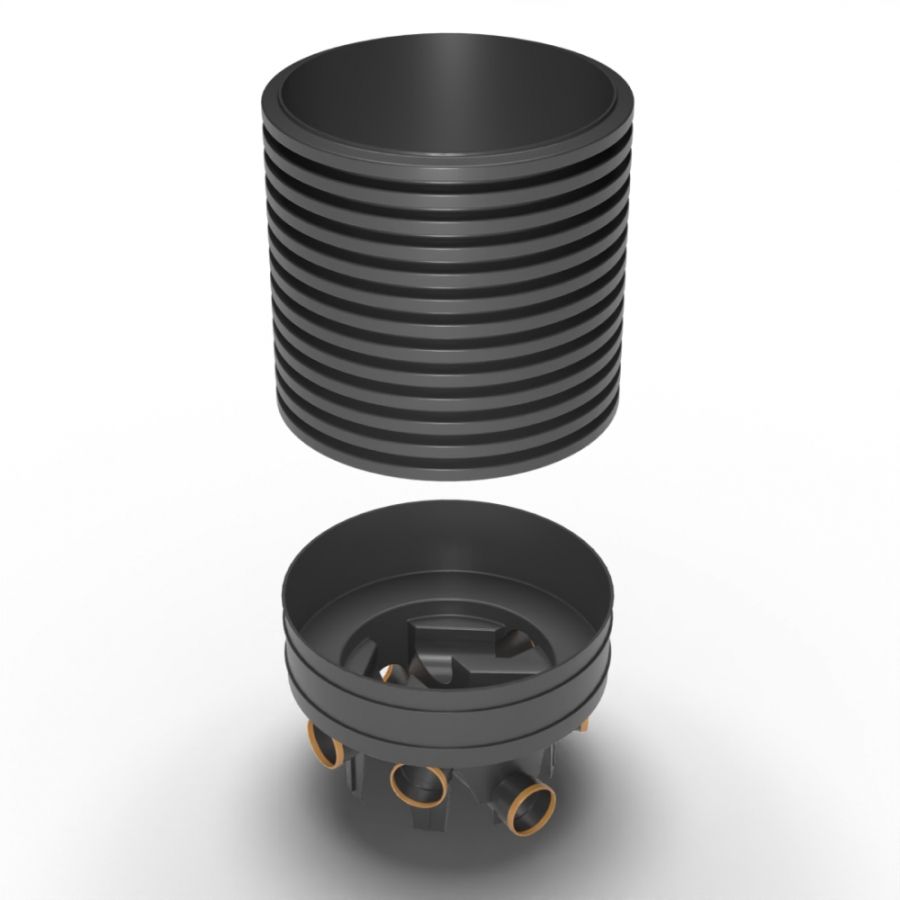

Inspection Chamber Set - 600mm Diameter x 1020mm Depth with 110mm Channel & 110mm Inlets
More Information
Code AIC1106001SP
£418.28 £348.57 £418.28
Spend another £1500 to pay over time with Klarna

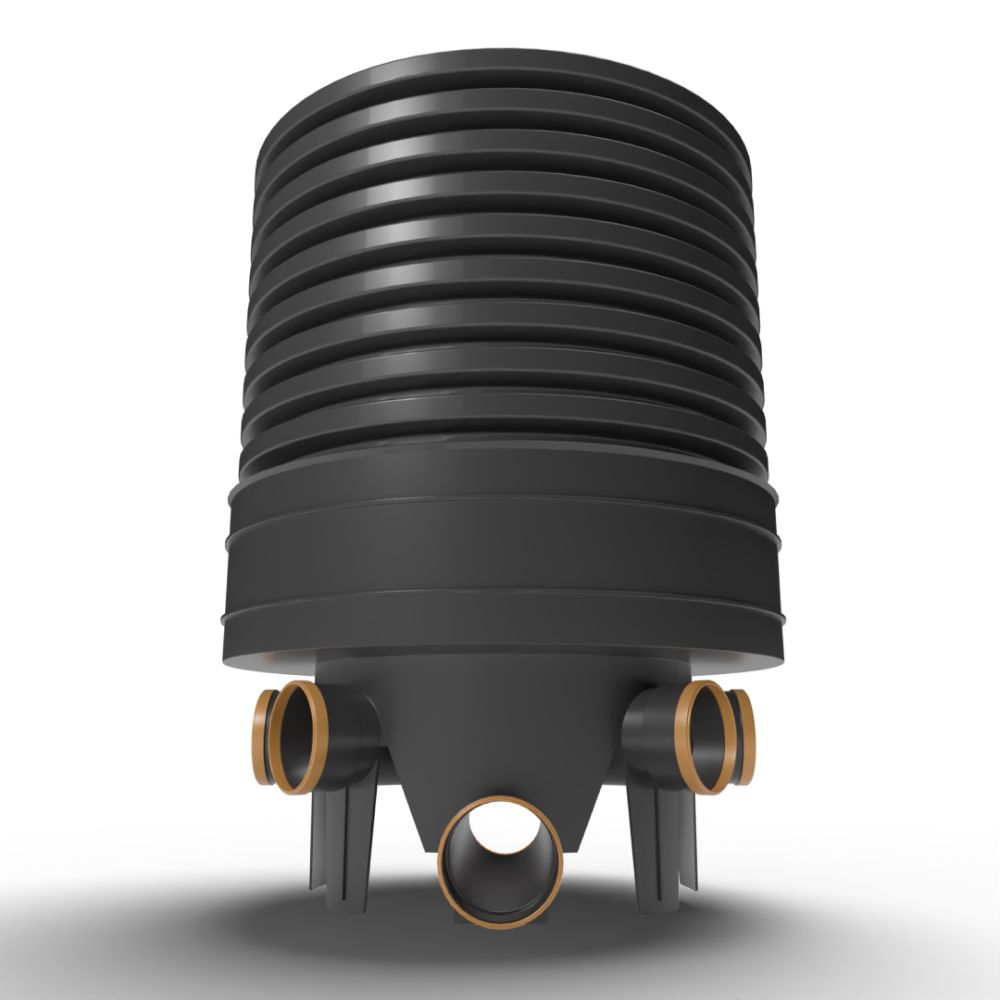

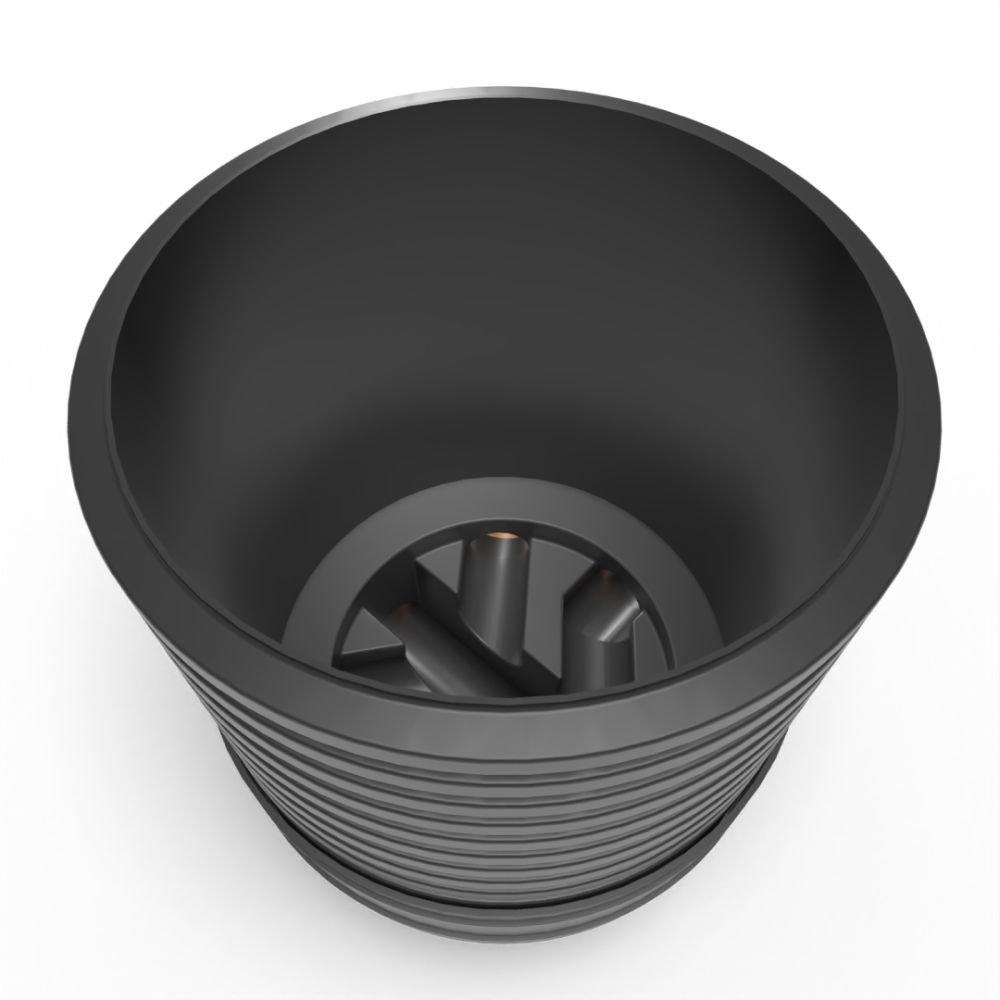

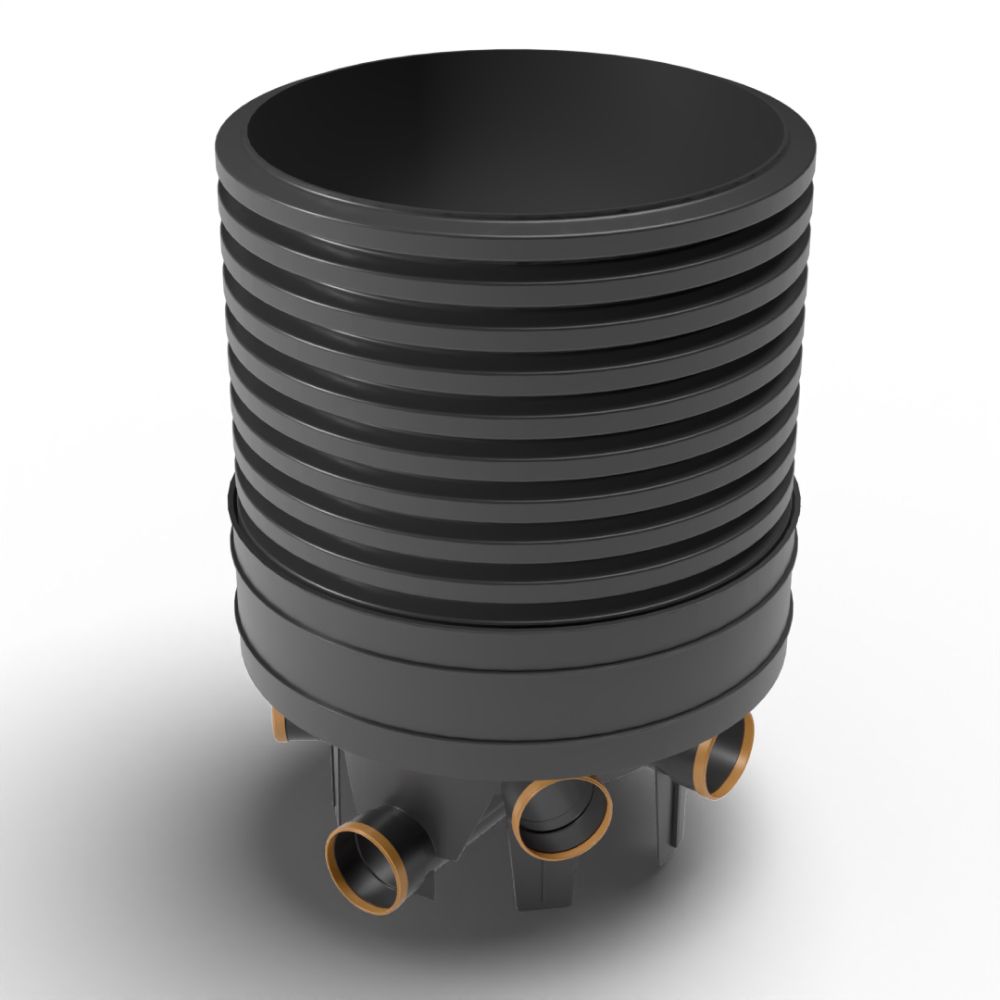

600mm diameter, pre-assembled inspection chamber, delivered ready to install. This model has an injection moulded chamber base with 110mm main channel socket connections including four further 110mm side inlets at 90°, 135°, 225° and 270° from the outlet at 0°.

Only the main channel will be open with side inlets supplied with blanking plugs that can be easily removed as required.

Our inspection chambers allow access to drain and sewer systems for testing, inspection, maintenance and cleaning. These actions can be performed from the surface and should not require entrance into the chamber itself. As part of Turtle Enviro's orange range, this chamber is designed for use in foul and surface water systems.

KEY FEATURES & BENEFITS OF THIS PRODUCT

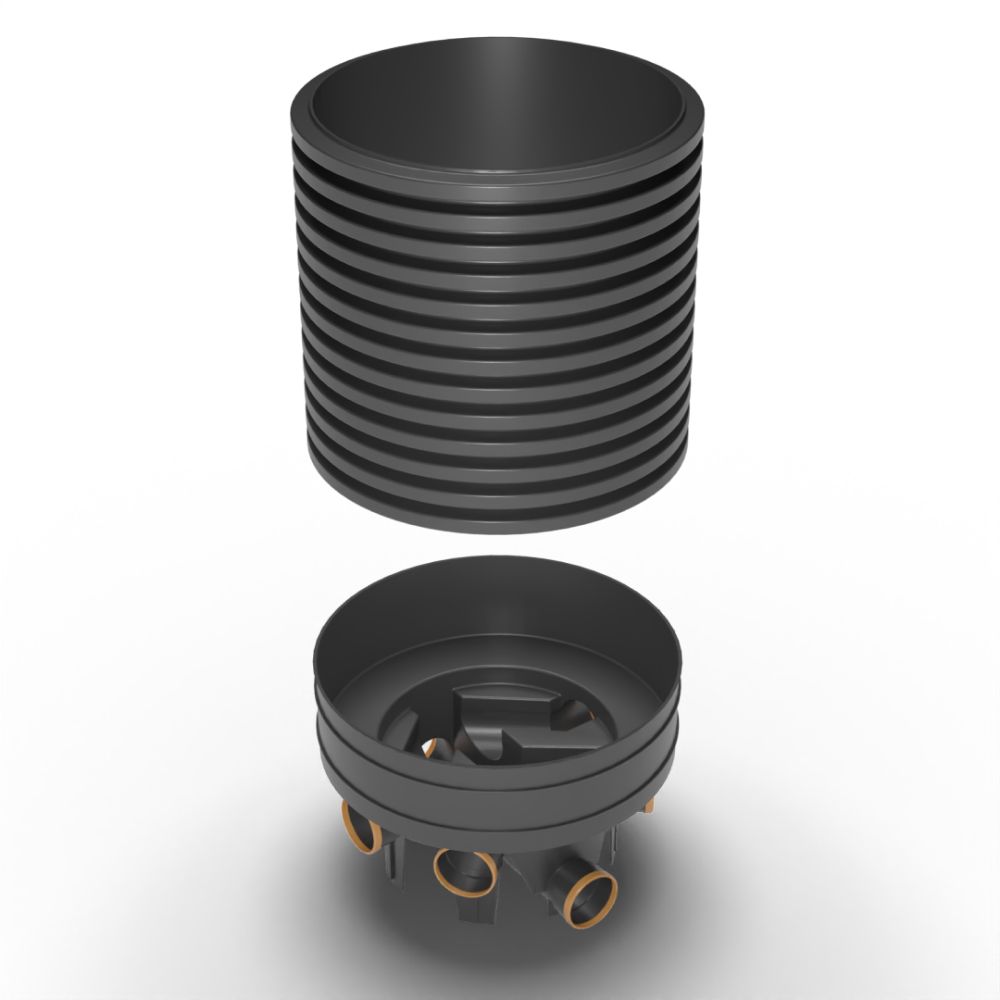

  • Single piece, pre-assembled chambers.
  • Durable injection moulded base - chemical and impact
    resistant.

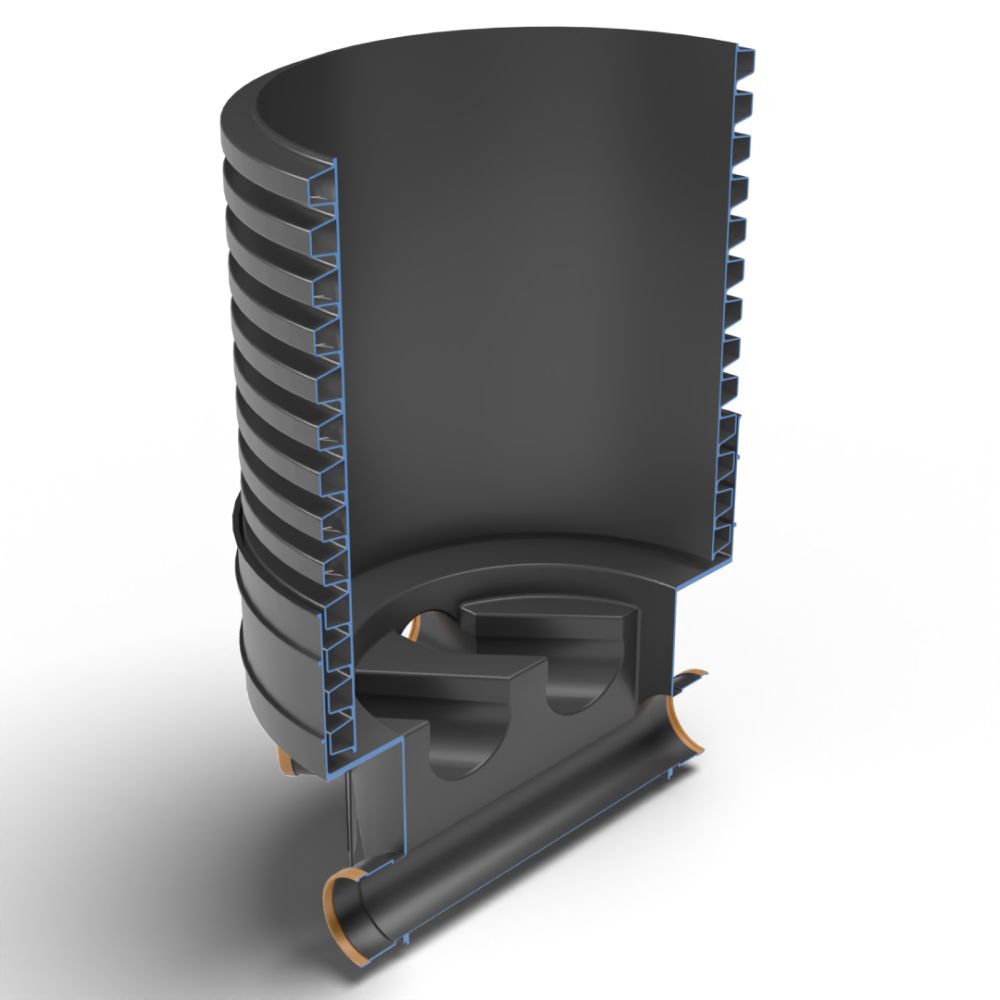

  • Stepped base - 65mm step from side to main channel.
  • Chambers include a fall from the main inlet to the outlet to
    help promote flow.
  • Base and five standard depths available.
  • Access shafts are easily cut onsite to the required depth.
  • Chambers can be installed in granular backfill.
