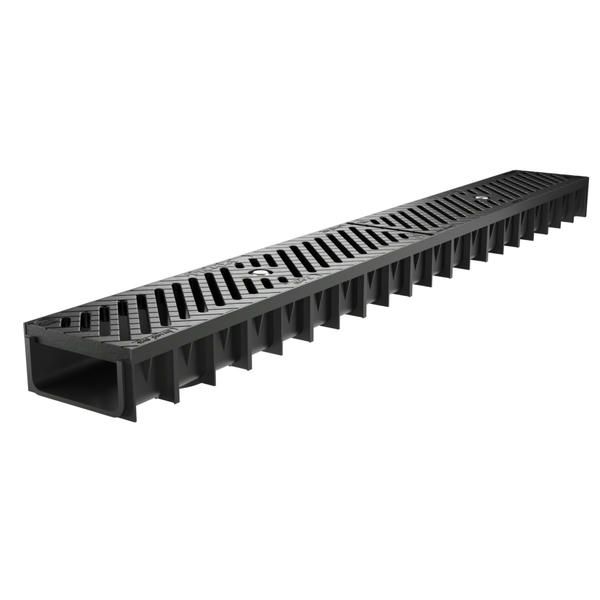

Lite Aqua Channel Drain Ductile Iron Grating Class B125 - 1mtr
Click or tap the image to open in fullscreen
| Code | AQ10DCH1BDIDS6 |
|---|---|
| EAN Code | 5056919000896 |
| Weight (kg) | 2.700000 |
| Brand | Polycon |
| Colour | Black |
| Length | 1mtr |
| Width | 120mm |
| Material | Polyethlene with Iron Grating |
| Pack Size | Single |
| Dimension | 1000mm (L) x 120mm (W) 48mm (H) |
| Guarantee | 1 Year Manufacturer Guarantee |
| System Size | 120mm |
| Height (mm) | 48mm |

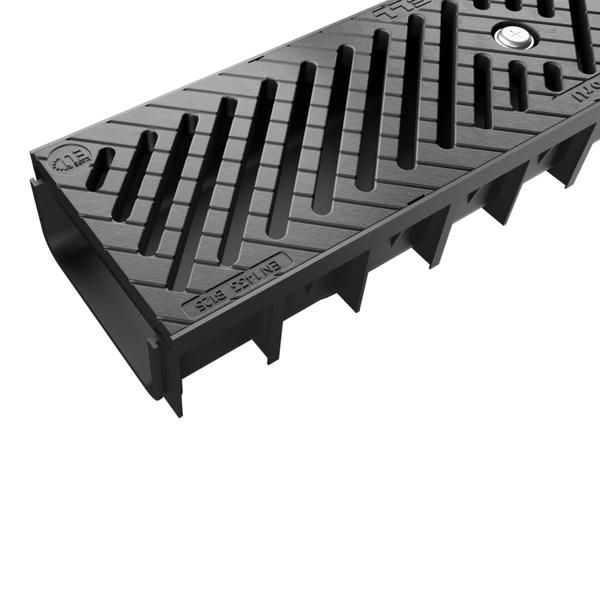

These lite aqua channel drains from Polycon carry a class B125 load rating, meaning that they can support loads of up to 12.5 tonnes. This makes them perfect for use on driveways or other outdoor areas that will be subject to light vehicle traffic. The black ductile iron mesh grating provides a minimal yet aesthetically pleasing finish.

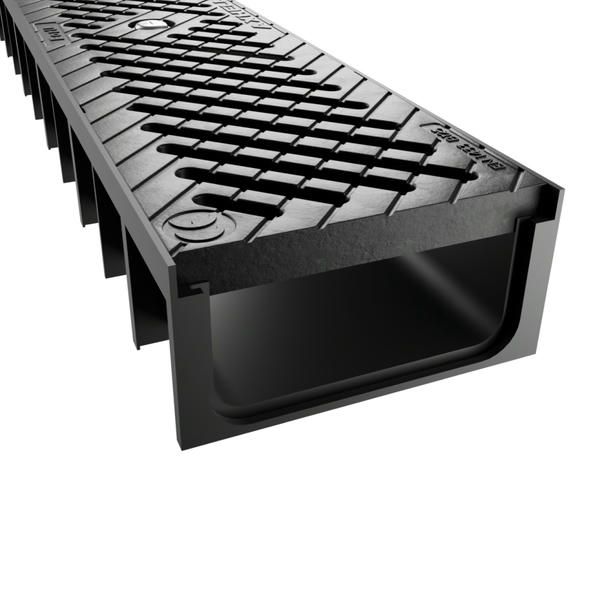

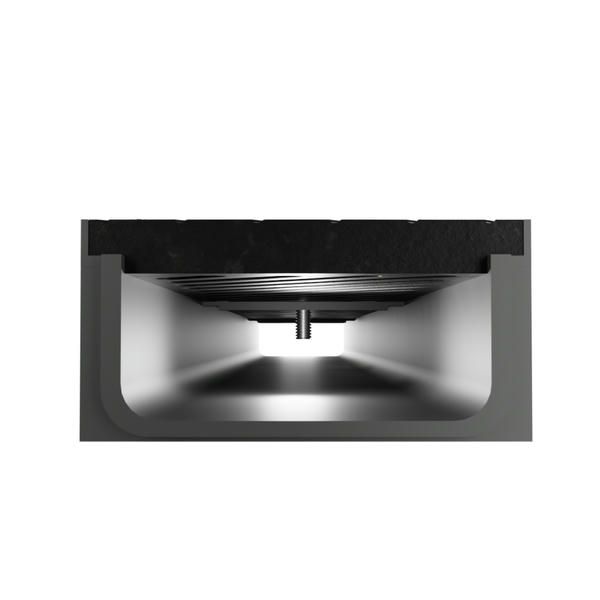

This channel drain has an overall depth of 48mm, is 1000mm in length and 115mm wide. Each slot on the iron grating is 7mm thick.

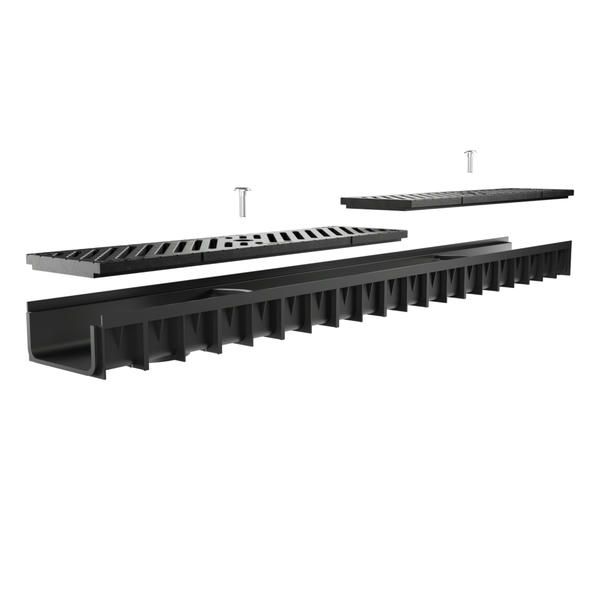

Lite aqua channel drains are easy to connect with each other as well as corner units and end caps are easy to secure. All joins in this system are 100% watertight, leaving no connection gaps. The drainage outlet is located on the underside of the channel.
