Manhole Cover Recessed - 5 Tonne x 600mm x 600mm x 43.5mm

In stock
Code
T16G3
More Information
Code T16G3
EAN Code 5016609106345
Weight (kg) 17.000000
Brand Clark-Drain
Colour Galvanised Steel
Material Galvanised Steel
Style Recessed
Tonne Loading 5 Tonne
Dimension 600mm x 600mm Opening x 43.5mm
Specification BS EN1461
Size 740mm x 740mm Cover Size
£128.66 £107.22
You need to spend another £250.00 to qualify for 2.5% discount.

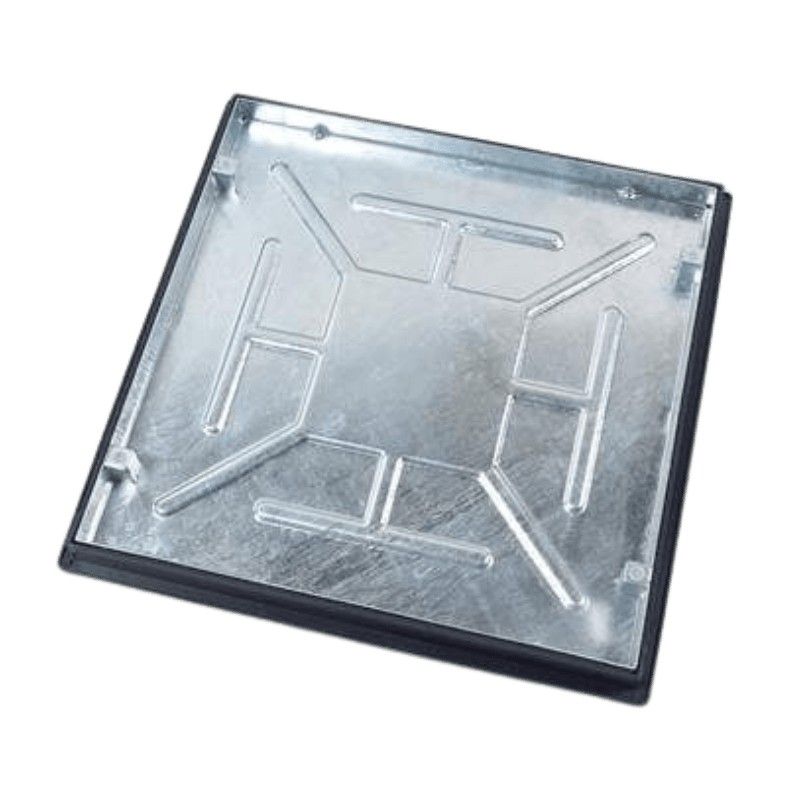

The T16G3 is a 600mm square, recessed manhole cover with a fully galvanised tray and a polypropylene frame.

Ideal for internal use, this cover features a factory fitted rubber sealing gasket to prevent any drain odours from escaping from the drainage system. It can also be used externally in pedestrian areas this cover is not suitable for driveway use.

The internal recessed tray depth is 43mm ideal for concrete or screed infills.

Like all manhole covers, the size refers to the clear opening size in this case 600mm x 600mm.

The actual overall size of the cover and frame is 740mm x 740mm x 58mm. There is a moulded grouting flange for easy installation.

This cover, which is made by Clark-Drain, has a 5 Tonne load rating.

The technical specification sheet for this product can be viewed and downloaded by clicking here.
