Naylor Aquavoid Home 20 Tonne Soakaway Crate - 1 Cubic Metre Kit
Click or tap the image to open in fullscreen
| Code | NAY65204M3 |
|---|---|
| Weight (kg) | 37.000000 |
| Brand | Naylor |
| Colour | Black |
| Material | Polypropylene |
| Style | Assembled |
| Tonne Loading | 20 Tonne |
| Dimension | 400mm (H) x 500mm (W) x 1000mm (L) |
| Life Expected | 60 Year Design Life |
| System Size | 1 Cubic Metre |
| Capacity | 1 Cubic Metre |
| Lateral Load (Tonnes per sqm) | 6t |
| Storage Volume | 950 Litres |

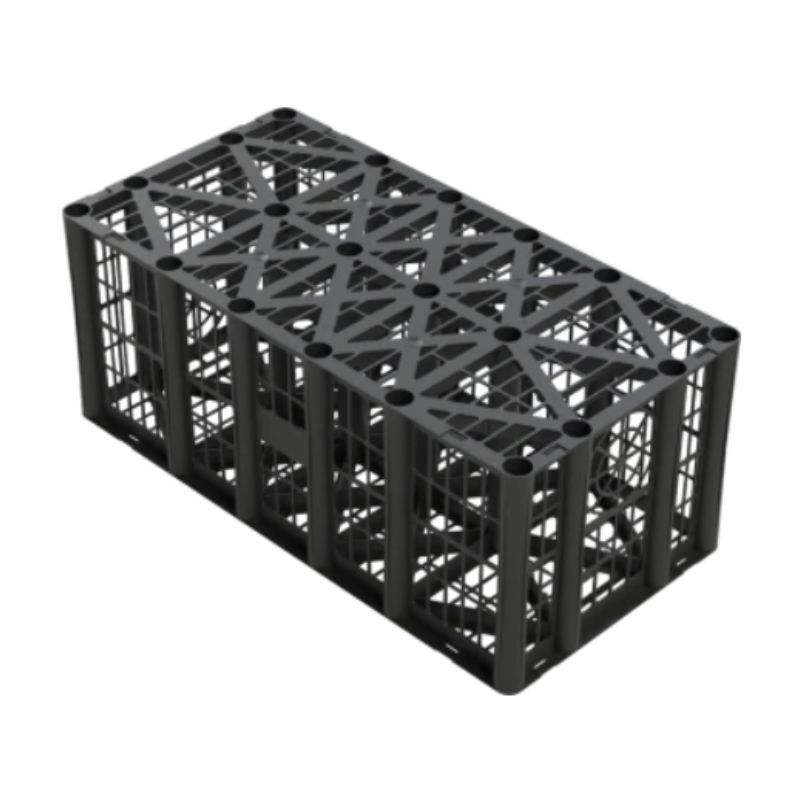

Our Aquavoid crates, manufactured by market leader Naylor are available fully assembled for fast application on-site. This soakaway set is comprised of 5 Aquavoid crates (20-tonne vertical load capacity) and sufficient non-woven geotextile membrane to wrap all outward faces of the soakaway including the base.
Each crate has an overall area of approximately 0.2 cubic metres, enabling 5 crates to be used together to make a 1 cubic metre soakaway. This means that the sizing of your installation will equal 1000mm (D) x 2500mm (W) x 400mm (H) if installed 5 horizontally and 1000mm (D) x 500mm (W) x 2000mm (H) if installed 5 vertically.
A cubic metre crate kit has an impressive storage volume of 960 litres, ensuring water can be safely and securely managed for a wide range of projects and installations.
- 20 tonne/m3 compressive strength
- 96% void ratio
- Suitable for retention, attenuation and infiltration
- Made from controlled and recycled material
- Modular system gives flexibility of shape ideal for awkward excavations
- Compatible with other Naylor systems to value engineer a hybrid system
