Packaged Plot Orifice Attenuation System - 5500 Litres with 110mm & 160mm Inlets

In stock
Only %1 left
Code
PASO10505500

Click or tap the image to open in fullscreen

Packaged Plot Orifice Attenuation System  - 5500 Litres with 110mm & 160mm Inlets
More Information
Code PASO10505500
£4,210.28 £3,508.57 £2,459.18
Spend another £1500 to pay over time with Klarna

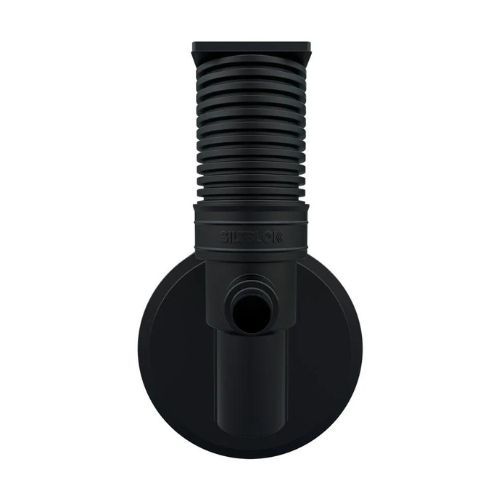

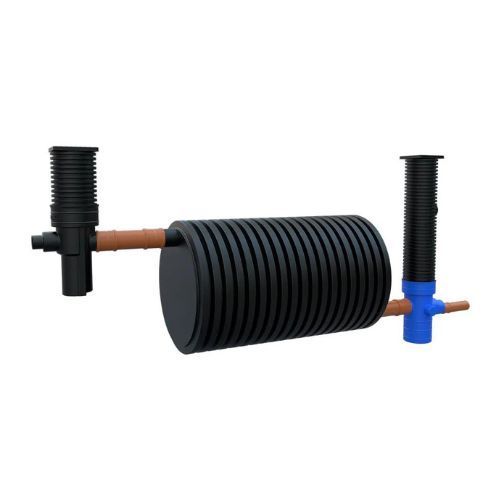

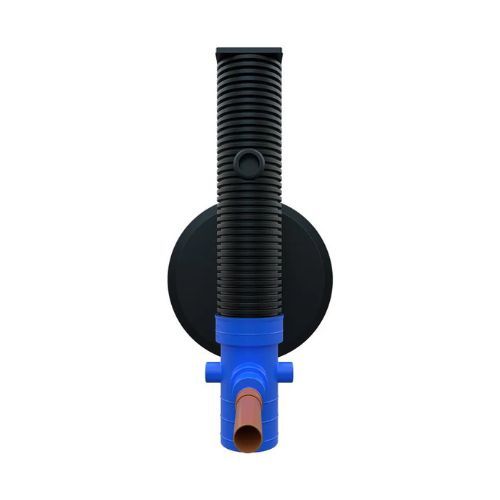

This plot attenuation system features a 300mm diameter silt blok, a pelican attenuation tank with a capacity of 5500 litres as well as an orifice chamber for the controlled discharge of water. This system is designed to reduce flooding as well as ensure that the stormwater is clean when it is discharged into a drain.

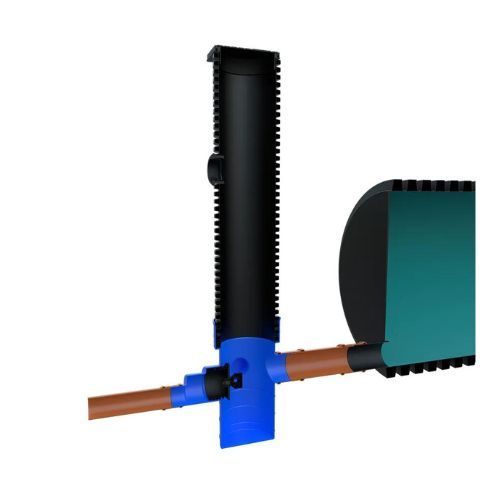

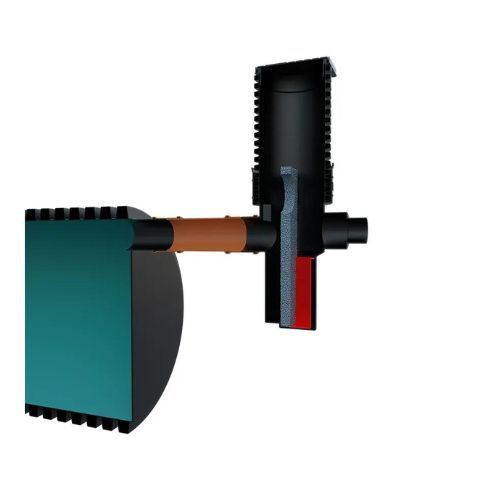

This is accomplished by having water that enters the drainage system pass through the siltblok, which contains a filter made from microporous plastic sections that will remove any sediment from the stormwater, allowing it to be cleaned before it goes through the rest of the system, which will prevent any blockages. As the attenuation tank fills up with stormwater, the orifice chamber will discharge it into a storm drain in a controlled manner so that flooding does not occur.
