Rainsmart Ellipse 5 Cubic Metre Soakaway

In stock
Code
90004M3F5

Click or tap the image to open in fullscreen

Rainsmart Ellipse 5 Cubic Metre Soakaway
More Information
Code 90004M3F5
£1,285.52 £1,071.27 £1,285.52

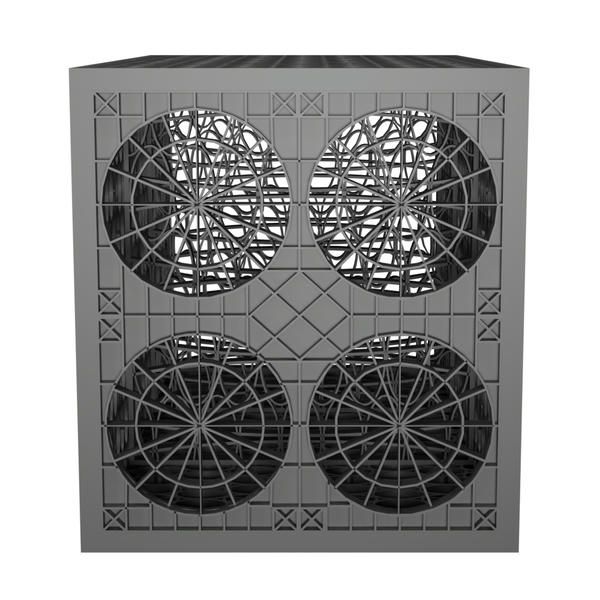

Our 5 cubic metre Ellipse soakaway system comes flat-packed and with enough geotextile membrane to wrap all outer layers of the sytem.

_x000D_

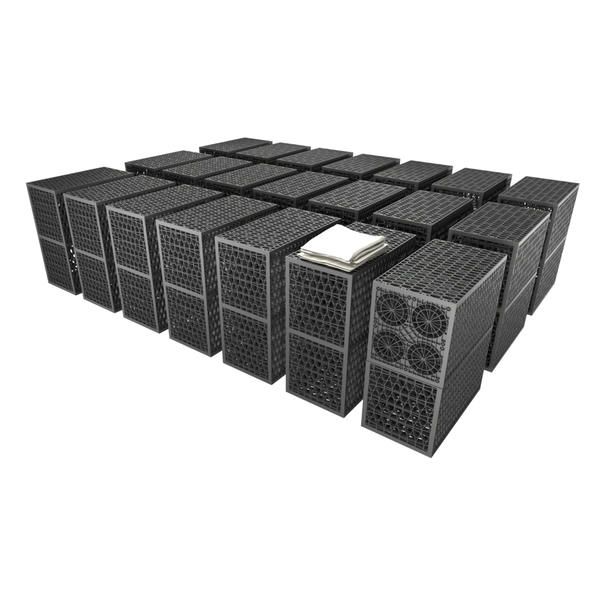

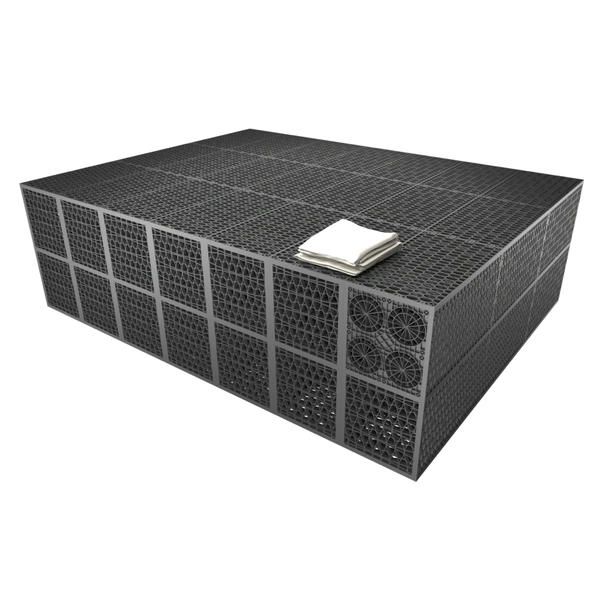

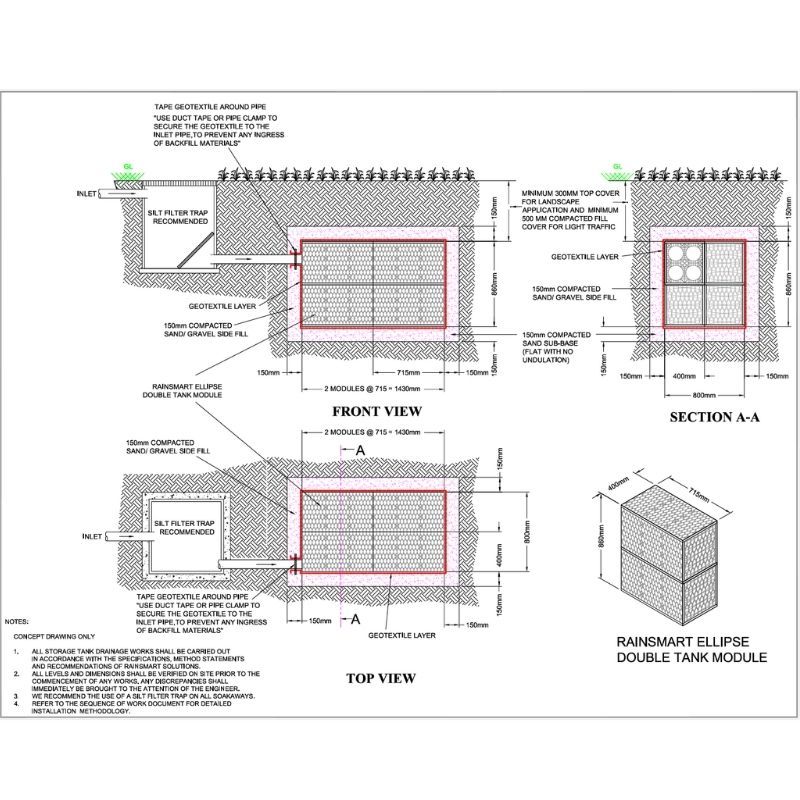

You will need 21 double crates which we would recommend laying 7 crates wide by 3 crates long. This will give you a complete soakaway of 2.8m (W) x 2.145m (L) x 0.86m (D).

_x000D_

A rubber mallet for assembly and a number of cable ties will also be included to join the crates together and to clamp the membrane around your pipe entry points.

_x000D_

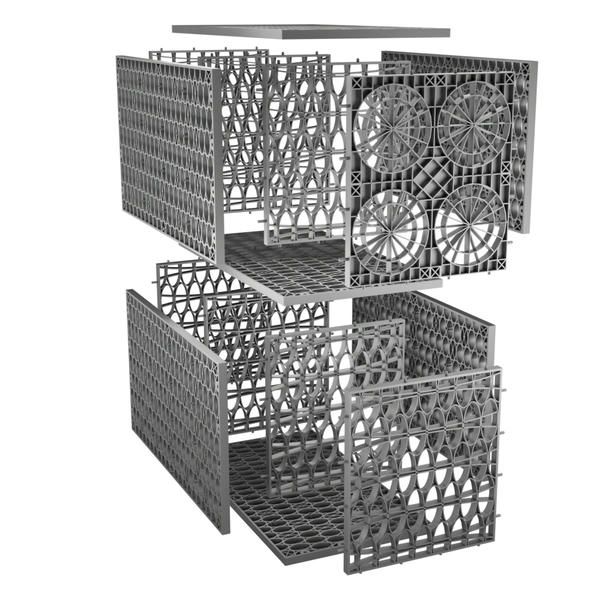

Assembly of this set really is a quick and easy process.

_x000D_

Full instructions are included and you can view a quick video on assembling flat-packed soakaways below.

_x000D_
_x000D_

_x000D_
_x000D_

Size, load and capacity

_x000D_

The dimensions of the complete soakaway are 2.8m (W) x 2.145m (L) x 0.44m (D)

_x000D_

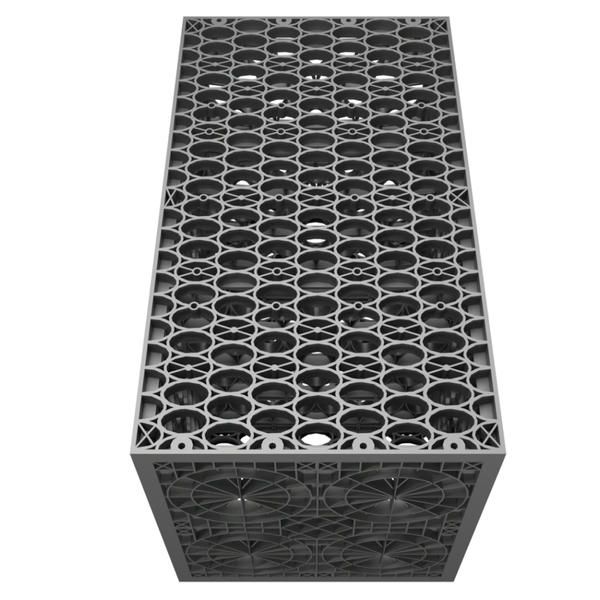

Rainsmart soakaway crates have a void ratio of 95% - this is the amount of free space within the crate structure that can be used for rainwater storage. The capacity of this 5 cubic metre soakaway is an impressive 5,164 Litres.

_x000D_

The vertical crush load capacity of 24.2 tonnes per square metre ensures that the Rainsmart Ellipse crates are safe to be used beneath gardens, pedestrian and low-speed traffic areas. The lateral crush load of 18 tonnes per square metre is the best of any type of soakaway crate currently available in the UK.

_x000D_

Joining crates together

_x000D_

Clips are not required to hold the crates together. No clips on any crate system are structural it is always the side fill on any soakaway installation which adds the stability needed to hold the structure in place. Cable Ties are included with our 5m³ Soakaway Sets and these are used to connect two sides of the complete soakaway together in an L formation (the others are jammed into this corner). These ties are used purely to hold the crates in place until the sand or gravel side fill has been added.

_x000D_

Inspection & Cleaning

_x000D_

For best practice, we always recommend that a pre-filter such as our Sentinel Silt Trap is used in conjunction with any modular soakaway system. Emptying the filter on a regular basis (this is only a five-minute job) will maintain the efficiency of the soakaway and greatly increase its lifespan.

_x000D_

All outward-facing crate surfaces of any soakaway should be wrapped in a non-woven geotextile membrane, which allows the free passage of water but prevents any soil or sand particles from entering the soakaway, maintaining its long term efficiency.

_x000D_

Flow Control with Attenuation

_x000D_

With the increase in emphasis on SuDS local planning authorities and specifiers are implementing flow control systems to prevent flooding. Through attenuation, rainwater is released back into the network, but in order to ensure you aren't passing any potential issues downstream this is done so at a controlled speed. Check out our Flow Controls page for more information about Orifice Chambers & Valves.

_x000D_

Connecting Pipes to Soakaways

_x000D_

The 110mm (or 160mm) drainage pipe is fed into the soakaway via the entry plate. Geotextile membrane should be installed over the opening first and then a small cross should be cut in the membrane at the entry point with a sharp knife. Carefully peel back the membrane, insert the pipe and tape or clamp the membrane tightly around the outside of the pipe to stop the ingress of any soil particles.

_x000D_

For a closer look at Soakaway Crates in general, please take a look at our introductory video.
