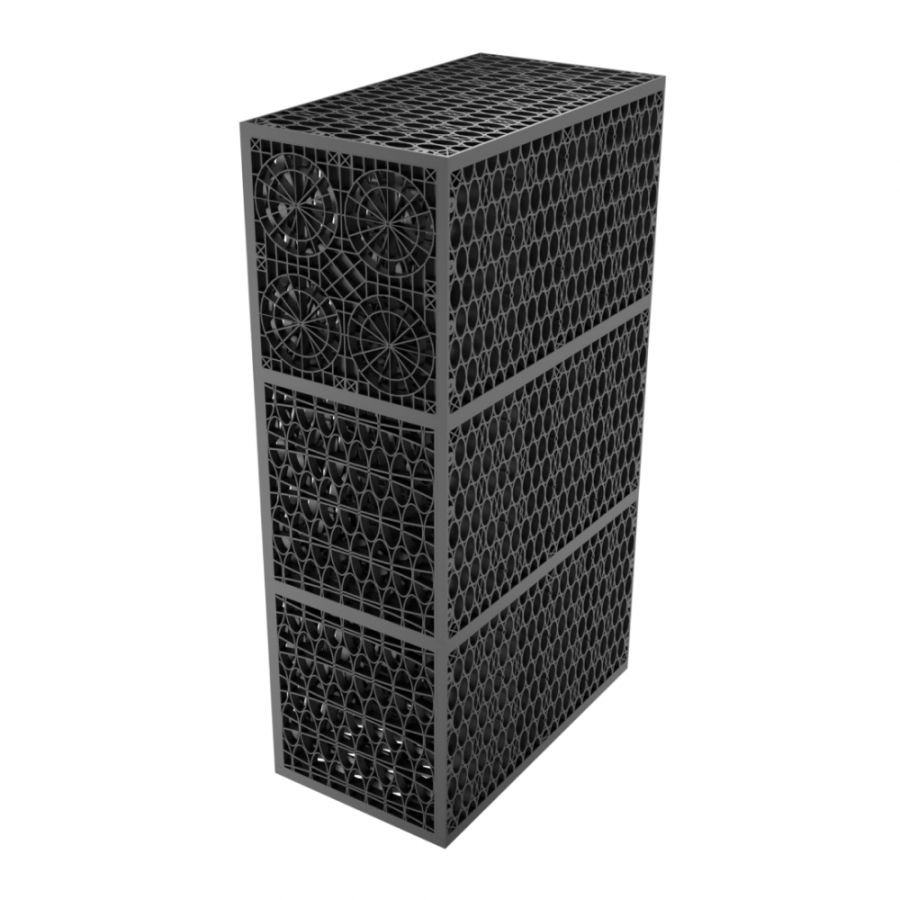

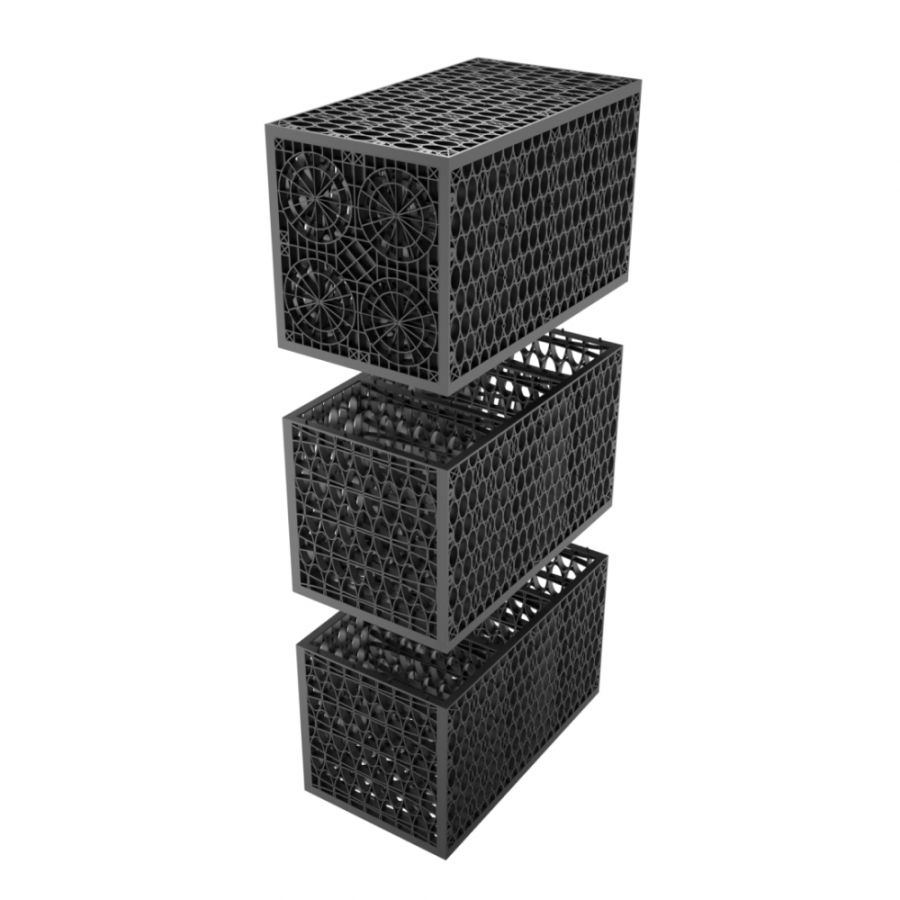

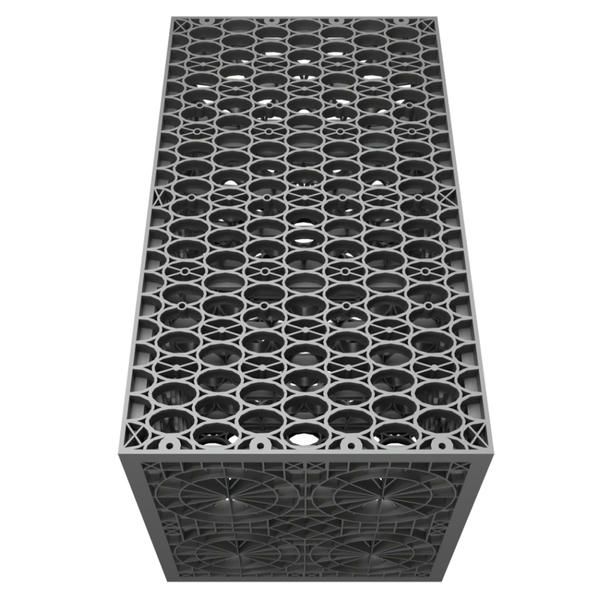

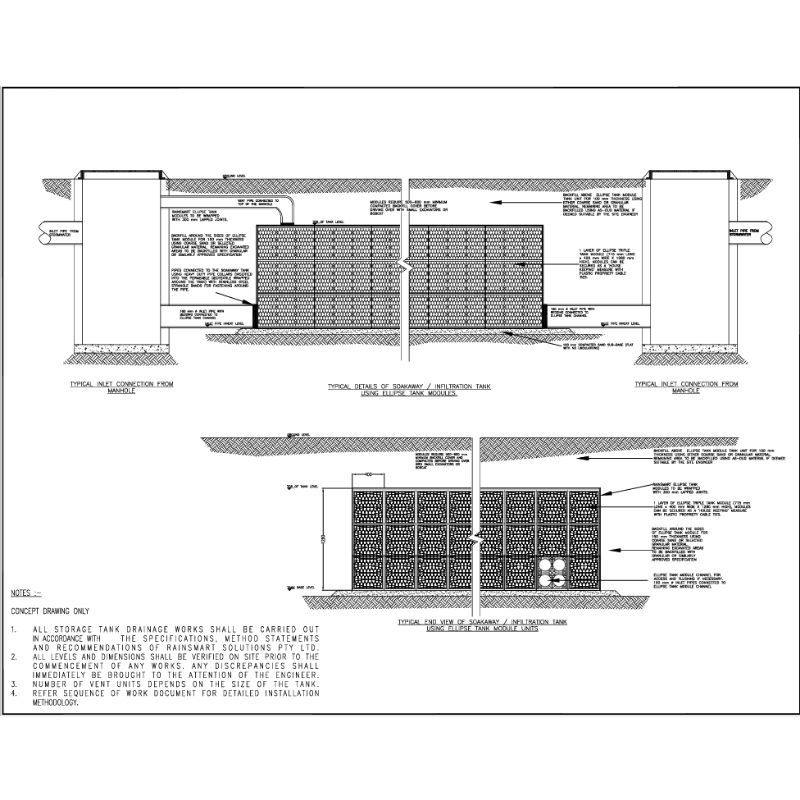

Rainsmart Ellipse Triple Soakaway Crate Flat-Packed
Click or tap the image to open in fullscreen
|Tonne Loading||24.2 Tonne|
|Dimension||715mm (L) x 400mm (W) x 1280mm (D)|
|Lateral Load (Tonnes per sqm)||18|
|Storage Volume||348 Litres|
|Soakaway Depth||Triple (1280mm)|

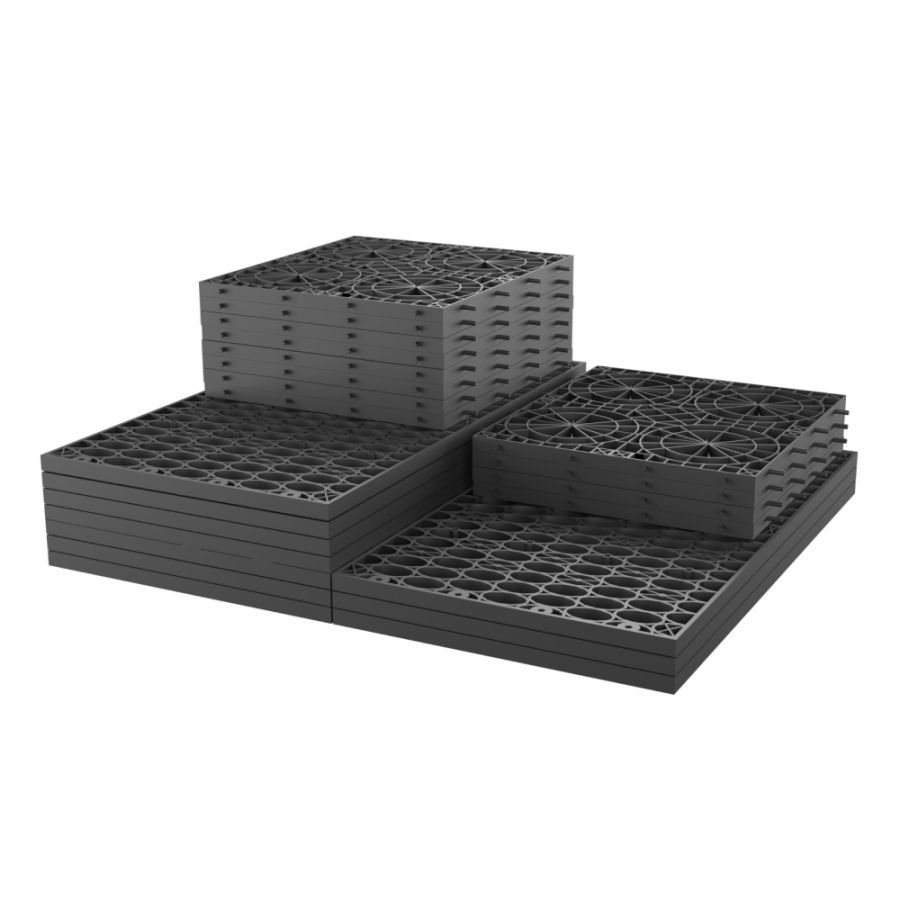

Our Rainsmart triple crates are available flat-packed forÂ easy assemblyÂ on site. Assembly of each crate takes approximately 3-5 minutes using a rubber mallet (supplied free of charge if you buy our 1 cubic metre soakaway sets).

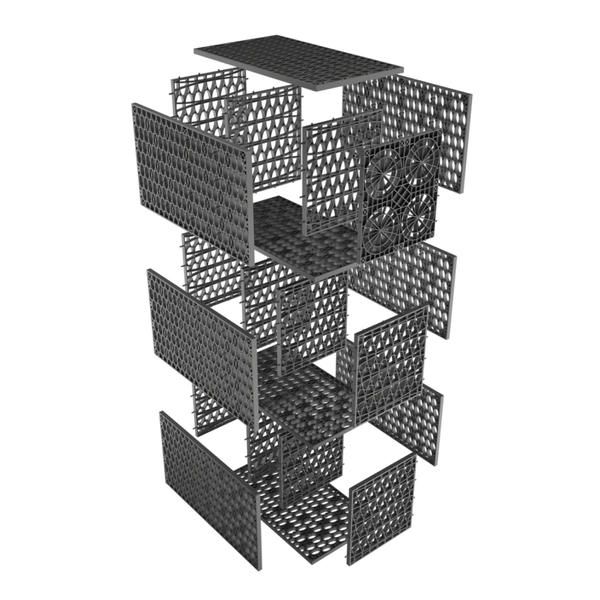

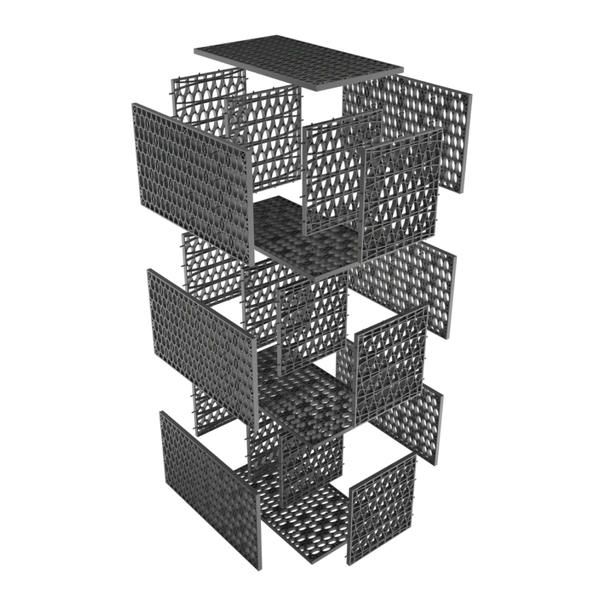

Take a quick look at how easy assembly is (the video below is for our double crates, but in order to build a triple add a further 4 small and 3 large plate part unit to the top - as you do to turn the shallow into the double):Â
Size, load and capacity

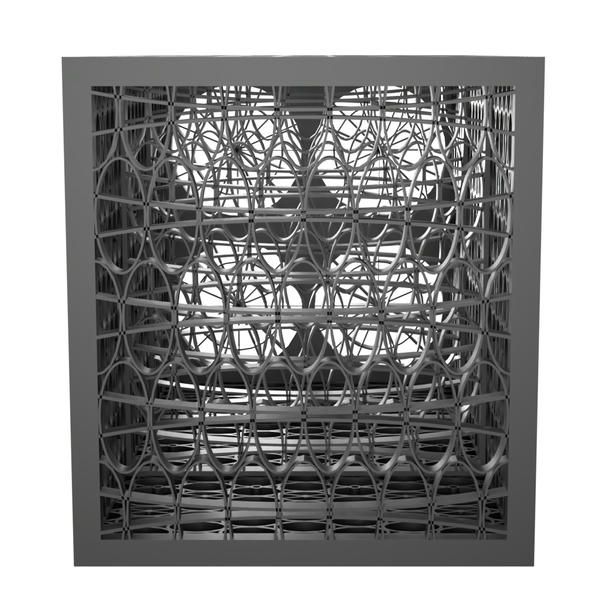

Each crate has an overall area of approximately 0.33 cubic metres, enabling 3 crates to be used together to make a 1 cubic metre soakaway.
The Rainsmart soakaway crate has an impressive void ratio of 95%. This is the amount of free space within the crate structure that can be used for rainwater storage. Each crate has a capacity of 347.77Litres.
The vertical crush load capacity of 24.2 tonnes per square metre ensures that the Rainsmart Ellipse crates are safe to be used beneath gardens and pedestrian areas. The lateral crush load of 18 tonnes per square metre is the best of any type of soakaway crate.
Joining crates together
Clips are not required to hold the crates together, we recommend the use of cable ties to hold the crates in situ until the side fill is introduced. No clips on any crate system are structural, it is the side fill which holds the installation in place. Cable Ties are included with our 1mÂ³ Soakaway Sets but if you are ordering individual crates and need to join them together you should order the ties separately.
All outward facing crate surfaces should be always wrapped inÂ non-woven geotextile membrane, which allows the free passage of water but prevents any soil or sand particles from entering the soakaway, maintaining its long term efficiency.
Connecting Pipes to Soakaways

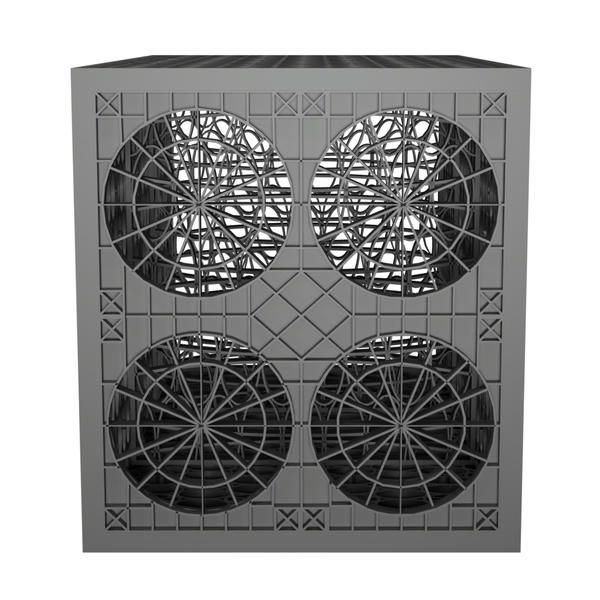

The 110mmÂ orÂ 160mmÂ drainage pipe is fed into the soakaway via one of the four circular 160mm open entry points. 110mm pipes simply rest on the bottom of this opening and we recommend that the pipe is inserted approximately 150mm inside the crate.Â Geotextile membraneÂ should be installed over the opening first and then a small cross should be cut in the membrane at the entry point with a sharp knife. Carefully peel back the membrane, insert the pipe and tape or clamp the membrane tightly around the outside of the pipe to stop the ingress of any soil particles.
For a closer look at Soakaway Crates in general, including installation tips,Â please take a look at our video.
Consider a pre-filter
For best practice we always recommend that a pre-filter such as ourÂ Sentinel Silt TrapÂ is used in conjunction with any modular soakaway system.Â Emptying the filter on a regular basis (this is only a five minute job) will maintain the efficiency of the soakaway and greatly increase its lifespan.
Download ourÂ Rainsmart Ellipse Double Soakaway Crate Assembly Instructions and Component List with Installation Tips PDF.
